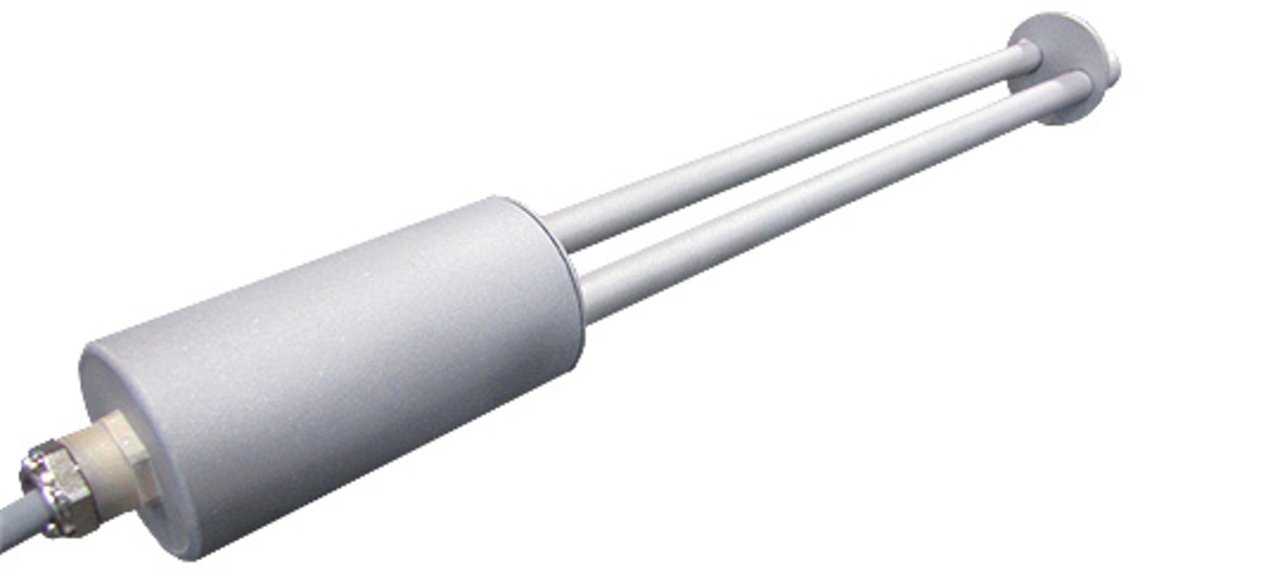

Tank heater - without magnets
- Tank heater for preheating of different types of oil such as heating and hydraulic oil
- Quick heating of the cold system to operating temperature
- consisting of a tubular heater Ø 12 mm, bent into a U-shape, material: 1.4571 with connection box made of steel
- with 1-pole temperature controller and limiter
- with 2,5 meters (alternative: 5/10/15 m) feed cable (oil resistant)
- Tank heater without magnet feet and a reduced diameter of Ø 45,0 mm for tanks with narrow openings

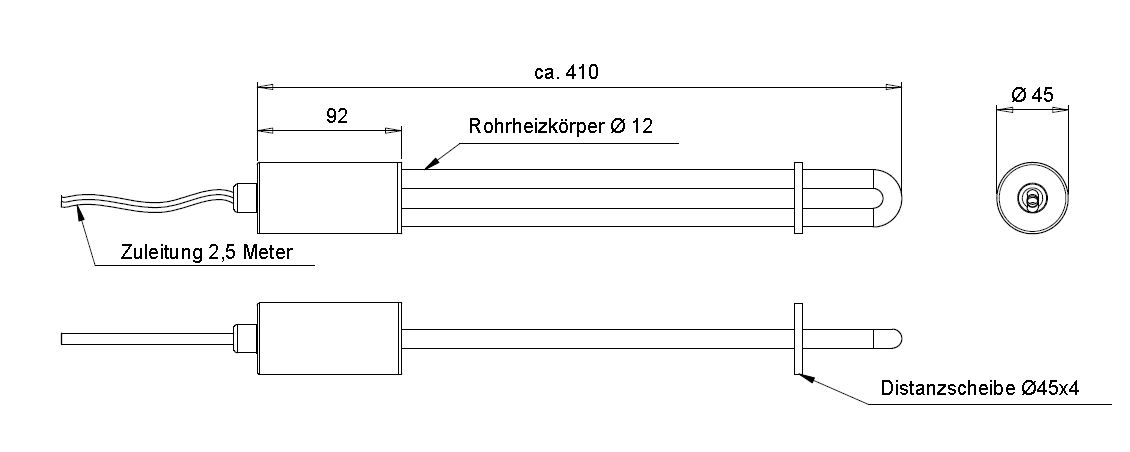

Technical data: Oil tank heaters without magnetic holders
| Cat. No. | Overall length (mm) | Voltage (Volt) | Capacity (Watt) | Watt density (W/cm²) | Weight (kg) |
|---|---|---|---|---|---|
| 9810 | 410 | 230 | 250 | 1,2 | 0,8 |
Available on request: other lengths, Voltages, cable lengths and temperature adjustments.
