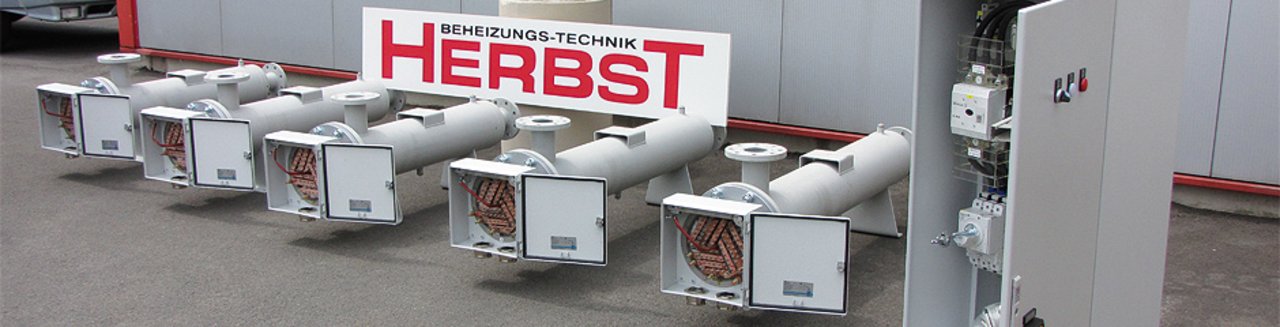

Circulation HEATERS | Flow series

Circulation heaters, also known as electric flow and process heaters, are used for direct heating of:



  • Water
    Circulation water
    Marine water
    demineralised water
    domestic or drinking water
  • Oil
    Thermal oil
    Hydraulic oil
    Turbine oil
    Heavy fuel oil and lube oil
    Heat transfer fluid, such as diphyl
  • Alkali/lyes and different industrial liquids
  • non-flammable gases
    Air
    Nitrogen



Electric circulation and process heaters for industrial applications

Circulation heaters are very suitable for an efficient heating of fluids and gases. The petrochemistry, shipbuilding, medical technology, industrial cleaning technology, plant construction and process engineering are typical areas of use.



Circulation heaters are manufactured according to customer specification and/or explicitly customized to the personal requirements of the purchaser:



  • position and construction of inlet port and outlet port
  • drain plug and vent pipe
  • fastening attachments for vertical or horizontal assembly
  • thermal insulation
  • special gaskets for different operating conditions
  • temperature sensors in various designs
  • permissible surface load of the medium
  • process measuring and control technology
  • for special applications with high power requirements circulation heaters
    in modular structure achieve a capacity up to 1 MW.
