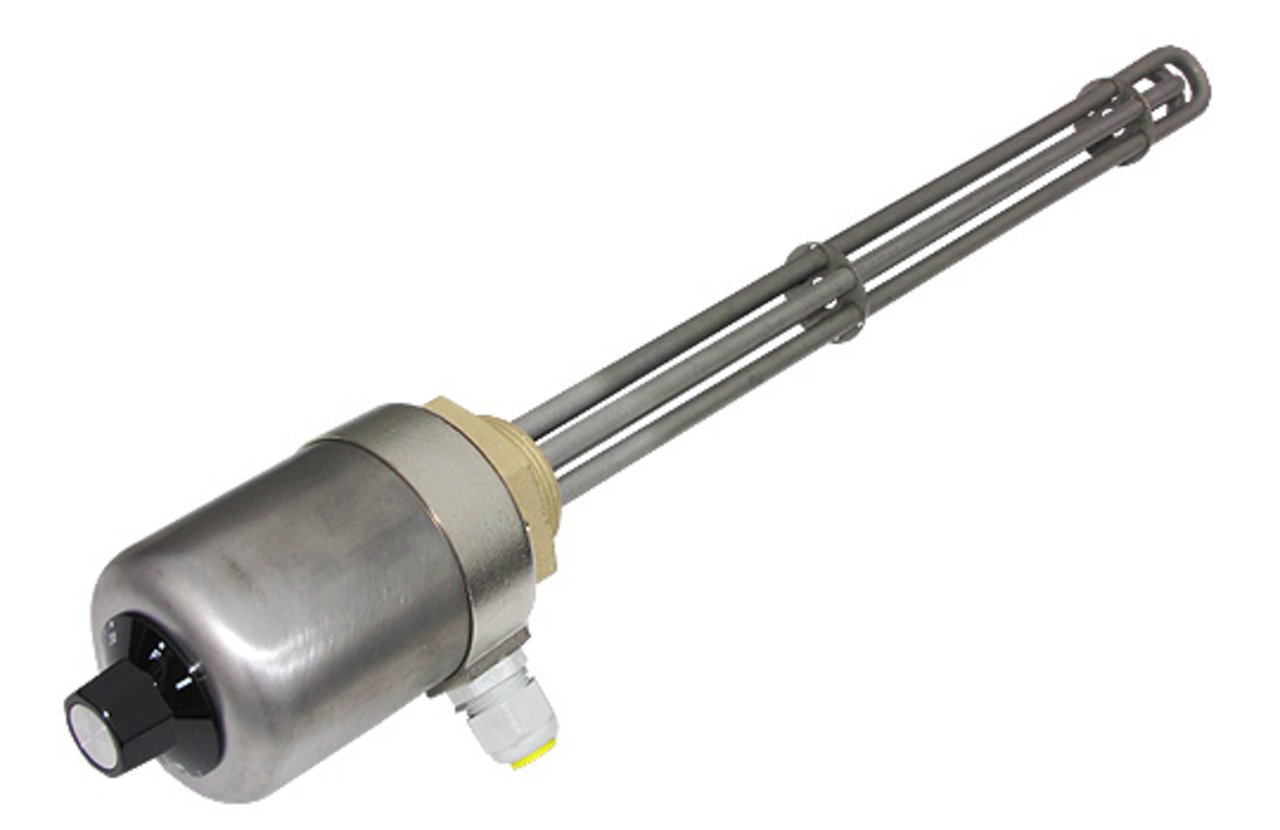

Screw plug immersion HEATERS | EHK series
stainless steel, with thermostat
- Screw plug immersion heater consisting of brass connector
G 1 1/2 - With 3 U-shaped hard-soldered immersion heaters tubes
Ø 8,5 mm - 3-pole adjustable thermostat 0-85 °C
(alternatively 30-110 °C), 16 amp - Screw-in heating element with zinc-plated steel hood
- IP 30 / IP 54 / IP 65 (internal setting only)
- For capacities of 11 kW and above: with singel-pole thermostat (for contactor control) and second cable entrance M16
Technical data: Screw plug immersion heater with temperature controller
| Cat No. | Immersion depth (built-in length) (mm) | Voltage (Volt) | Capacity (Watt) | Watt density (W/cm²) | Weight (kg) |
|---|---|---|---|---|---|
| 11212020 | 200 | 230/400 | 1500 | 5,9 | 1,48 |
| 11212025 | 250 | 230/400 | 2000 | 6,0 | 1,55 |
| 11212035 | 350 | 230/400 | 3000 | 6,0 | 1,70 |
| 11212045 | 450 | 230/400 | 4500 | 6,9 | 1,85 |
| 11212065 | 650 | 230/400 | 6000 | 6,2 | 2,15 |
| 11212065 | 650 | 230/400 | 9000 | 9,2 | 2,15 |
| 11212080 | 800 | 230/400 | 9000 | 7,4 | 2,38 |
| 11212100 | 1000 | 3x400 | 12000 | 7,9 | 2,68 |
Sheath material: 1.4541, 1.4571, 1.4828, 1.4876, 2.4858
Available on request: other lengths and heating capacities, unheated zones, other voltages, materials and connector sizes. Different temperature controller and limiter are available.
