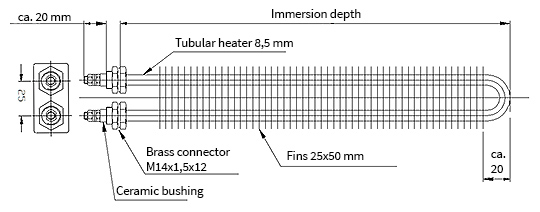

Finned heaters - 25x50 mm
- consisting of a tubular heater RHK Ø 8,5 mm;
material: 1.4541 - bent into a U-shape, bend weakly heated
- ribbed with stainless steel fins 25 x 50 mm
- with brass connector M14 x 1,5 x 12 mm
- For heating of air and gases
- Finned design enables improved heat transfer and higher loads
- For use use in duct heaters and industrial ovens and furnaces

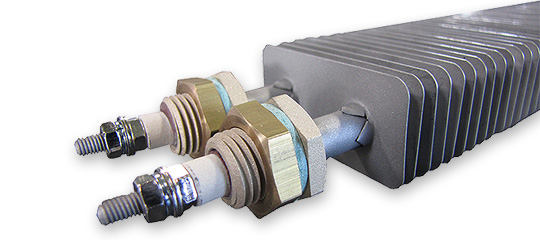

Finned heater with 25x50 mm stainless steel fins
| Cat. No. | Immersion depth (built-in length) (mm) | Voltage (Volt) | Capacity (Watt) | Weight (kg) |
|---|---|---|---|---|
| 25500250 | 250 | 230 | 500 | 0,35 |
| 25500350 | 350 | 230 | 750 | 0,50 |
| 25500450 | 450 | 230 | 1000 | 0,65 |
| 25500650 | 650 | 230 | 1500 | 0,90 |
| 25500850 | 850 | 230 | 2000 | 1,15 |
Available on request: other lengths, capacities, unheated zones, voltages, materials and thread sizes.
