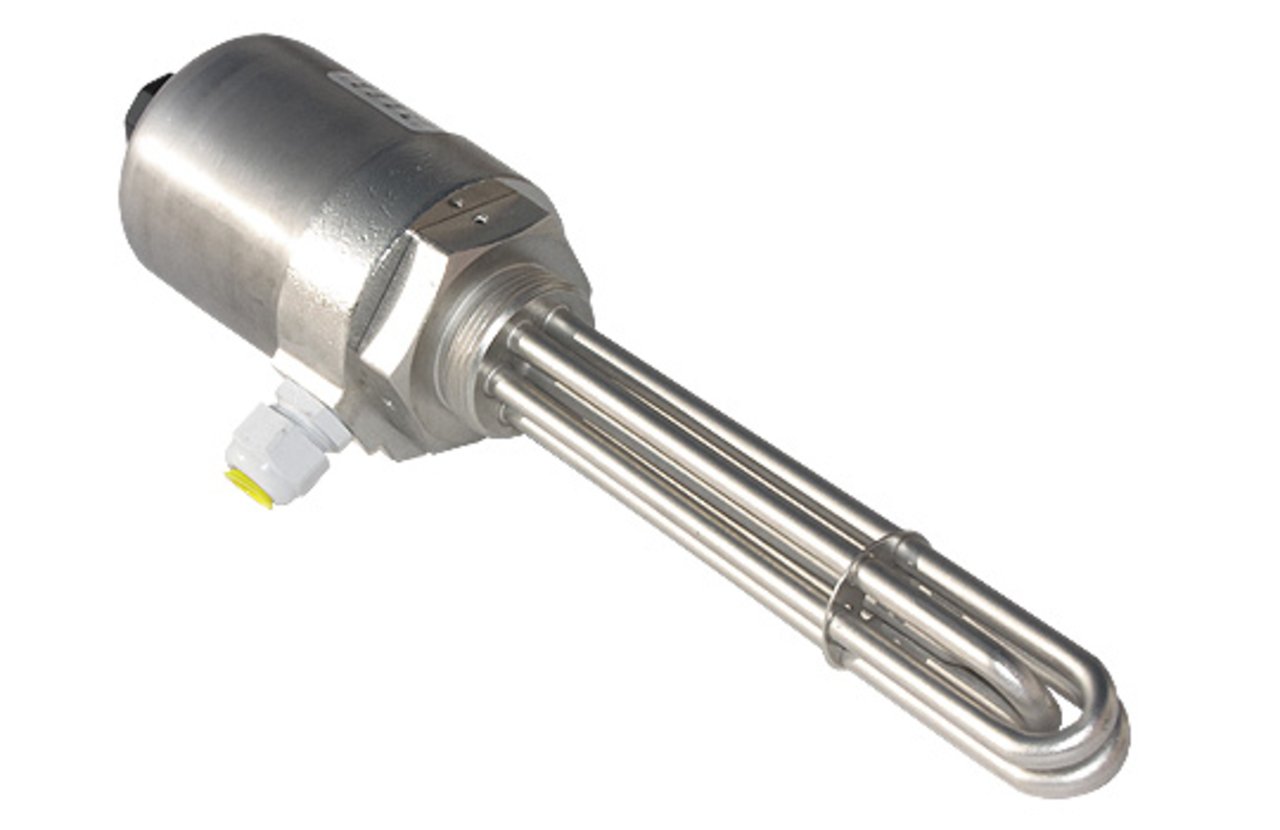

Screw plug immersion HEATERS | EHK series
copper, nickel-plated, with thermostat
- Electric heating element consisting of brass connector
G 1 1/2 - With 3 U-shaped hard-soldered copper immersion heaters tubes Ø 8,5 mm
- 3-pole adjustable thermostat 0-85 °C
(alternatively 30-110 °C), 16 amp - Screw plug immersion heater with zinc-plated steel hood
- IP 30 / IP 54 / IP 65 (internal setting only)
- For capacities of 11 kW and above: with singel-pole thermostat (for contactor control) and second cable entrance M16
- Immersed parts nickel-plated
Screw plug immersion heater, nickel-plated, with thermostat

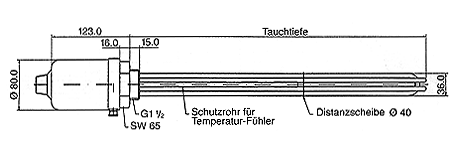

| Cat. No. | Immersion depth (built-in length) (mm) | Voltage (Volt) | Capacity (Watt) | Watt density (W/cm²) | Weight (kg) |
|---|---|---|---|---|---|
| 11202023 | 230 | 230/400 | 3000 | 9,9 | 1,55 |
| 11202033 | 330 | 230/400 | 4500 | 9,7 | 1,72 |
| 11202042 | 420 | 230/400 | 6000 | 9,9 | 1,85 |
| 11202053 | 530 | 230/400 | 7500 | 9,6 | 2,02 |
| 11202062 | 620 | 230/400 | 9000 | 9,7 | 2,17 |
| 11202079 | 790 | 3 x 400 | 12000 | 9,9 | 2,43 |
Available on request: other lengths and heating capacities, unheated zones, other voltages, materials and connector sizes. Different temperature controller and limiter are available.
