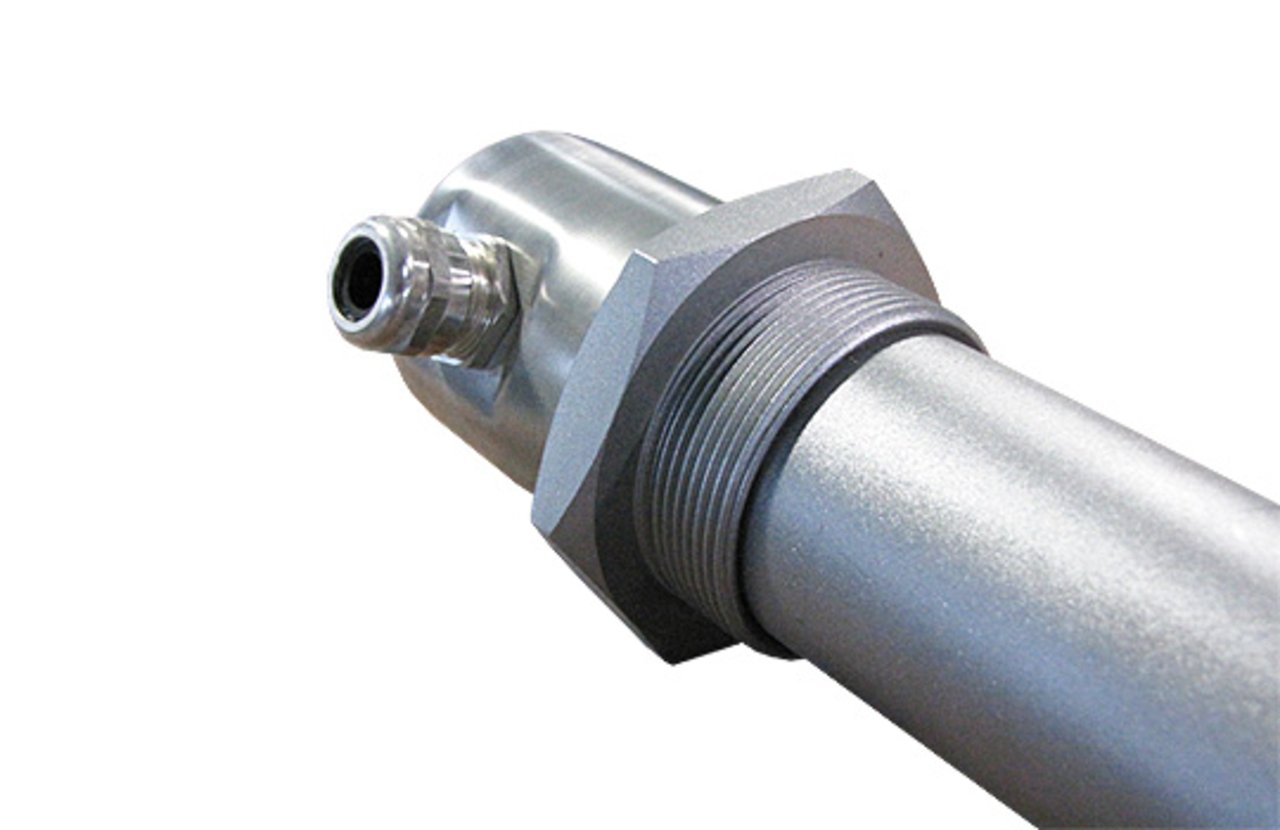

Cartridge heaters - G2 with steel tube
- Cartridge heaters consisting of steel connector G2
with welded-in steel tube Ø 52 mm - with interchangeable ceramic heating insert
- with connection box
- protection class IP 65
- for horizontal mounting
- Applications: Pre-heating of hydraulic, turbine and thermal oil, preheating of gear boxes and various lubricating systems.
- Please verify the permissible surface load
- For reliability under high vibrations we recommend our special tubular heating elements instead of the ceramic heating elements

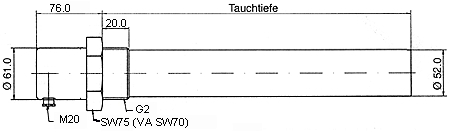

Cartridge heater Ø 52 mm with ceramic heating element Ø 46 mm
Technical data - Cartridge heaters Ø 52 mm
| Cat. No. | Immersion depth (built-in length) (mm) | Voltage (Volt) | Capacity (Watt) | Surface load (W/cm²) | Weight (kg) |
|---|---|---|---|---|---|
| 54691020 | 200 | 230 | 500 | 1,5 | 1,2 |
| 54691030 | 300 | 230 | 750 | 1,5 | 1,8 |
| 54691040 | 400 | 230 | 1000 | 1,5 | 2,2 |
| 54691050 | 500 | 230 | 1250 | 1,5 | 2,5 |
| 54691060 | 600 | 230 | 1450 | 1,5 | 2,8 |
| 54691070 | 700 | 230 | 1700 | 1,5 | 3,2 |
| 54691080 | 800 | 230 | 1950 | 1,5 | 3,5 |
| 54691090 | 900 | 230 | 2200 | 1,5 | 3,9 |
| 54691100 | 1000 | 230 | 2450 | 1,5 | 4,3 |
| 54691110 | 1100 | 230 | 2700 | 1,5 | 4,6 |
| 54691120 | 1200 | 230 | 2950 | 1,5 | 5,0 |
| 54691140 | 1400 | 3 x 400 | 3450 | 1,5 | 5,8 |
| 54691160 | 1600 | 3 x 400 | 3900 | 1,5 | 6,5 |
| 54691180 | 1800 | 3 x 400 | 4400 | 1,5 | 7,2 |
| 54691200 | 2000 | 3 x 400 | 4900 | 1,5 | 7,9 |
Sheath material: Steel: Ø 52 mm; Stainless steel 1.4571: Ø 52 mm
Available on request:other lengths and heating capacities, unheated zones, other voltages and materials.
