HERBST Anschlusskopf
Standard-Keramikkopf
Product inquiry
We would be pleased to provide you with an individual offer and would be glad to advise you personally:
Tel: +49 (0) 2394 / 91 11 36
Ceramic heating elements Ø 46 mm
- for installation in protection tubes
- consisting of the ceramic coil support, the heating coil and the heat-resistant support rod
- for horizontal mounting
- Ceramic heating element for preheating oil, water and lubricants
- Also suitable for gaseous media and various industrial fluids

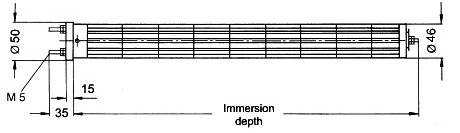

Ceramic sectional heaters Ø 46 mm for mounting in protection tubes Ø 52 mm
Technical data - Ceramic heating elements Ø 46 mm
| Cat. No. | Diameter (mm) | Immersion depth (mm) | Voltage (Volt) | Capacity (Watt) | Weight (kg) |
|---|---|---|---|---|---|
| 54460020 | 46 | 200 | 230 | 500 | 0,60 |
| 54460030 | 46 | 300 | 230 | 750 | 0,80 |
| 54460040 | 46 | 400 | 230 | 1000 | 1,25 |
| 54460050 | 46 | 500 | 230 | 1250 | 1,25 |
| 54460060 | 46 | 600 | 230 | 1450 | 1,45 |
| 54460070 | 46 | 700 | 230 | 1700 | 1,70 |
| 54460080 | 46 | 800 | 230 | 1950 | 1,95 |
| 54460090 | 46 | 900 | 230 | 2200 | 2,20 |
| 54460100 | 46 | 1000 | 230 | 2450 | 2,45 |
| 54460110 | 46 | 1100 | 230 | 2700 | 2,65 |
| 54460120 | 46 | 1200 | 230 | 2950 | 2,85 |
| 54460140 | 46 | 1400 | 3x400 | 3450 | 3,40 |
| 54460160 | 46 | 1600 | 3x400 | 3900 | 3,80 |
| 54460180 | 46 | 1800 | 3x400 | 4400 | 4,25 |
| 54460200 | 46 | 2000 | 3x400 | 4900 | 4,70 |
Available on request: other lengths and heating capacities, unheated zones, other voltages and materials.
