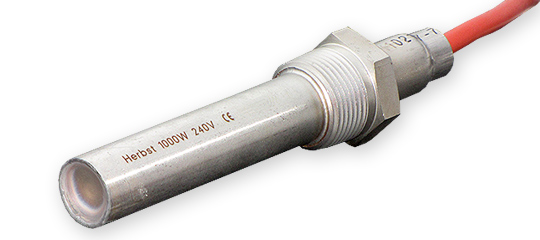

Heating cartridges with integral heat sensor
- built-in thermocouple
- built-in Pt100
Please inquire about the delivery time prior to placing your order.
Available on request: other lengths and heating capacities, unheated zones, voltages, materials and thread sizes.
Heavy-duty heating cartridges with thermocouple and Pt-100 [mm]
| Cat. No. | Diameter (mm) | Length (mm) | Output at 230 Volt (Watt) |
|---|---|---|---|
| 82650400 | 6,5 | 40 | 200 |
| 82650501 | 6,5 | 50 | 200 |
| 82650602 | 6,5 | 60 | 250 |
| 82651003 | 6,5 | 100 | 350 |
| 82100400 | 10 | 40 | 250 |
| 82100501 | 10 | 50 | 250 |
| 82100602 | 10 | 60 | 250 |
| 82100803 | 10 | 80 | 315 |
| 82101004 | 10 | 100 | 400 |
| 82101605 | 10 | 160 | 630 |
| 82120600 | 12,5 | 60 | 400 |
| 82121001 | 12,5 | 100 | 500 |
| 82121602 | 12,5 | 160 | 800 |
Heavy-duty heating cartridges with thermocouple and Pt-100 [inch]
| Cat. No. | Diameter (inch) | Length (inch) | Output at 230 Volt (Watt) |
| 82630380 | 1/4" | 1 1/2" | 160 |
| 82630511 | 1/4" | 2" | 200 |
| 82630642 | 1/4" | 2 1/2" | 250 |
| 82630763 | 1/4" | 3" | 300 |
| 82950380 | 3/8" | 1 1/2" | 200 |
| 82950511 | 3/8" | 2" | 250 |
| 82950642 | 3/8" | 2 1/2" | 250 |
| 82950763 | 3/8" | 3" | 400 |
| 82951024 | 3/8" | 4" | 400 |
| 82951525 | 3/8" | 6" | 500 |
| 82130640 | 1/2" | 2 1/2" | 250 |
| 82131021 | 1/2" | 4" | 500 |
| 82131522 | 1/2" | 6" | 630 |
