Ceramic heating elements Ø 32 mm
- Ceramic sectional heater for installation in protection tubes
Ø 36 mm - consisting of the ceramic coil support, the heating coil and the heat-resistant support rod
- for horizontal mounting
- Electric heater for hydraulic oil and lubricating oil systems, preheating of gear boxes and thermal oil plants

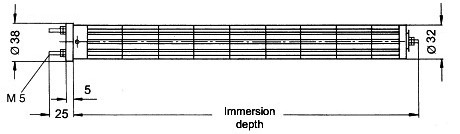

Ceramic sectional heaters Ø 32 mm for mounting
in protection tubes Ø 36 mm
Technical data: Ceramic heating elements Ø 32 mm
| Cat. No. | Diameter (mm) | Immersion depth (mm) | Voltage (Volt) | Capacity (Watt) | Weight (kg) |
|---|---|---|---|---|---|
| 54320030 | 32 | 300 | 230 | 450 | 0,40 |
| 54320040 | 32 | 400 | 230 | 600 | 0,60 |
| 54320050 | 32 | 500 | 230 | 750 | 0,75 |
| 54320060 | 32 | 600 | 230 | 900 | 0,95 |
| 54320070 | 32 | 700 | 230 | 1050 | 1,10 |
| 54320080 | 32 | 800 | 230 | 1200 | 1,45 |
| 54320090 | 32 | 900 | 230 | 1350 | 1,65 |
| 54320100 | 32 | 1000 | 230 | 1500 | 1,80 |
| 54320110 | 32 | 1100 | 230 | 1650 | 2,00 |
| 54320120 | 32 | 1200 | 230 | 1800 | 2,20 |
| 54320130 | 32 | 1300 | 230 | 1950 | 2,35 |
| 54320140 | 32 | 1400 | 230 | 2100 | 2,50 |
| 54320150 | 32 | 1500 | 230 | 2250 | 2,75 |
| 54320160 | 32 | 1600 | 230 | 2400 | 2,95 |
Available on request: other lengths and heating capacities, unheated zones, other voltages and materials.
