Temperaturregelung über
Ausseneinstellung
Temperaturregelung über
Inneneinstellung
Product inquiry
We would be pleased to provide you with an individual offer and would be glad to advise you personally:
Tel: +49 (0) 2394 / 91 11 36
Cartridge heaters - G2 with thermostat
- Cartridge heater consisting of a brass connector G2 with
hard-soldered steel tube Ø 36 mm - with interchangeable ceramic heater insert
- single-pole adjustable thermostat 0-85° C
- with connection box in steel or stainless steel
- IP 65 with internal temperature setting
- IP 54 with external temperature setting
- Immersion heater for horizontal mounting
- Suitable for lubricating oil systems and liquids
- Please verify the permissible surface load
Cartridge heater Ø 36 mm with ceramic heating element Ø 32 mm

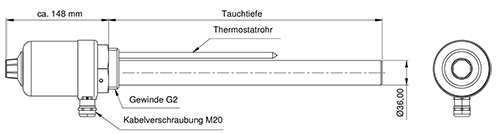

HERBST Cartridge heater with external temperature setting

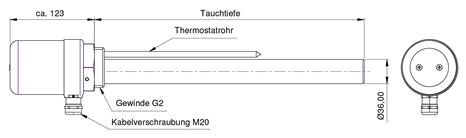

HERBST Cartridge heater with internal temperature setting
Technical data - Cartridge heaters Ø 36 mm
| Cat. No. | Immersion depth (built-in length) (mm) | Voltage (Volt) | Capacity (Watt) | Surface load (W/cm²) | Weight (kg) |
|---|---|---|---|---|---|
| 54692030 | 300 | 230 | 450 | 1,5 | 1,8 |
| 54692040 | 400 | 230 | 600 | 1,5 | 2,1 |
| 54692050 | 500 | 230 | 750 | 1,5 | 2,3 |
| 54692060 | 600 | 230 | 900 | 1,5 | 2,5 |
| 54692070 | 700 | 230 | 1050 | 1,5 | 2,7 |
| 54692080 | 800 | 230 | 1200 | 1,5 | 2,9 |
| 54692090 | 900 | 230 | 1350 | 1,5 | 3,1 |
| 54692100 | 1000 | 230 | 1500 | 1,5 | 3,3 |
Sheath material: Steel: Ø 36 mm
Available on request:other lengths and heating capacities, unheated zones, other voltages and materials.
