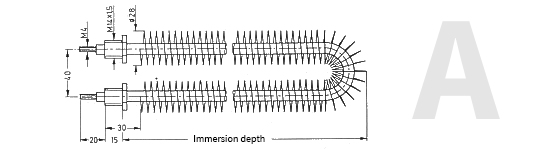

Finned tubular heaters A
- Finned heater consisting of a tubular heater RHK Ø 8,5 mm; material: 1.4541
- bent into a U-shape, continuously finned with stainless steel strip 10 mm and 200 fins per m
- with brass connector M14 x 1,5 x 12 mm lg.
- Finned heating elements allow higher power consumption than tubular heating elements
- The minimum order quantity is 6 pieces
Areas of application: air conditioning and ventilation systems, drying furnaces and drying cabinets, pre-heating unit in packaging machines, heating element in duct heaters
Finned tubular heater A with stainless steel strip
| Cat. No. | Immersion depth (built-in length) (mm) | Voltage (Volt) | Capacity (Watt) | Weight (kg) |
|---|---|---|---|---|
| 91710250|230|500 | 250 | 230 | 500 | 0,35 |
| 91710350|230|750 | 350 | 230 | 750 | 0,50 |
| 91710450|230|1000 | 450 | 230 | 1000 | 0,65 |
| 91710650|230|1500 | 650 | 230 | 1500 | 0,90 |
| 91710850|230|2000 | 850 | 230 | 2000 | 1,15 |
Available on request: other lengths, capacities, unheated zones, voltages, materials and thread sizes
