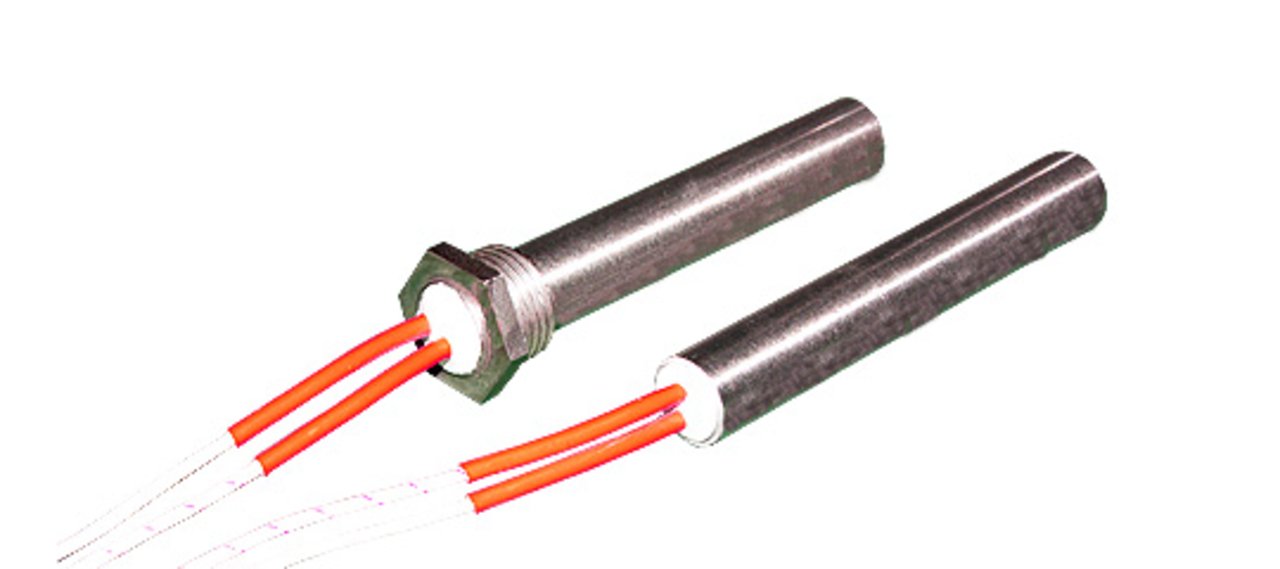

Wire connection - Heating cartridges
Available on request: other lengths and heating capacities, diameters, unheated zones, other voltages, materials and thread sizes.
Types | Wire types | Available for type | |||
|---|---|---|---|---|---|
NP | VP | HLP | |||
G | Glassfibre-insulated nickel strand silicone-impregnated, resistant up to 200 °C | • | • | • | |
TG | Teflon glassfibre nickel-strand, resistant up to 250 °C | • | • | • | |
T | Teflon-nickel strand, resistant up to 250 °C | • | • | • | |
H | Glassfibre insulating hose Thermal class H resistant up to 180 °C | • | • | • | |
P | Glassfibre insulating beads, high-temperature resistant. Best insulation for temperatures above 250 °C. Disadvantages: possible insulation gaps at sharp corners; breakage risk | • | • | • | |
S | Threaded connections of nickel-plated steel (stainless steel 1.4305 on request) M3 for cartridges Ø23-25 mm M4 for cartridges Ø32-40 mm | • |
|
| |
GH | Glassfibre nickel strand plus glassfibre insulating hose | • | • | • | |
GHG | Glassfibre nickel strand plus single glassfibre insulating hose | • | • | • | |
GP | Glassfibre nickel strand plus insulating beads | • | • | • | |
MW | Corrugated metal hose (zinc-coated steel) | • | • | • | |
MG | Braided metal sleeving (zinc-coated steel) | • | • | • | |
MGS | Braided metal hose | • | • | • | |
SIK | Silicone hose conductor, 3-core (earth conductor), poured with silicone, resistant up to 180 °C | • | • | • | |
B | Rectangular connector with tube bend | • | • | • | |
BW | Rectangular connector with tube bend and braided metal sleeving | • | • | • | |
MWW | Stainless steel connector with cube and metal hose | • | • | • | |
N | Threaded connector, stainless steel, welded to cartridge | • | • | • | |
F | Flange connector, stainless steel, welded to cartridge (other shapes on request) | • | • | • | |
L | Mounting plate, steel, welded to cartridge | • | • | • | |
BAO | Connector casing with cable screw fitting, protection system IP 54 | • | • | • | |
| Both connections either glassfibre nickel strand or threaded pins | • | • | • | |
Special heating zones | |||||
| More heat near the end | • | • | • | |
| Long unheated zone | • | • | • | |
| Unheated centre | • | • | • | |
