Screw plug immersion HEATERS | EHK series
copper, with connection hood
- Electric heating element consisting of brass connector
G 1 1/2 - With 3 U-shaped hard-soldered copper immersion heater
tubes Ø 8,5 mm - Screw plug immersion heater with zinc-plated steel hood
- Protection system IP 65
- Immersed parts nickel-plated

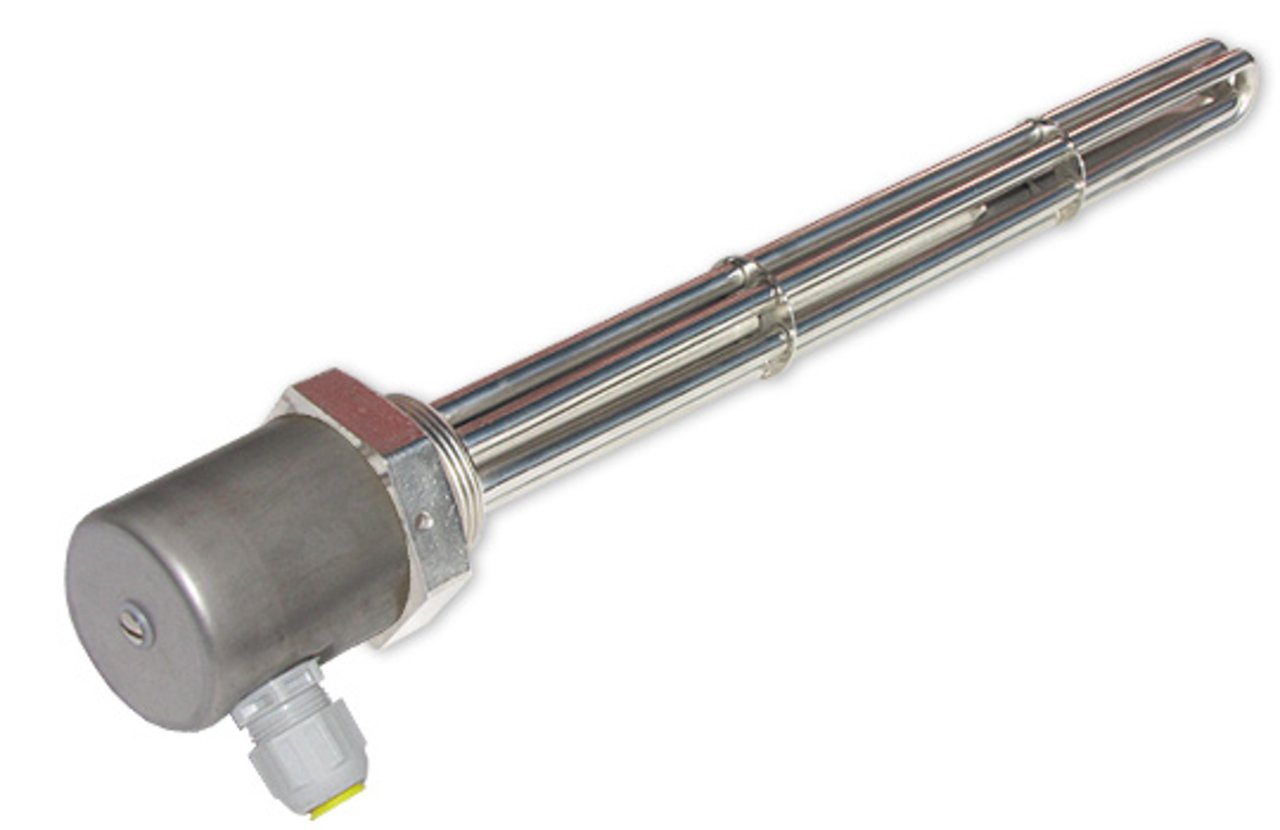

Screw plug immersion heater, nickel-plated, with connection box
| Cat. No. | Immersion depth (built-in length) (mm) | Voltage (Volt) | Capacity (Watt) | Watt density (W/cm²) | Weight (kg) |
|---|---|---|---|---|---|
| 11201023 | 230 | 230/400 | 3000 | 9,9 | 0,85 |
| 11201033 | 330 | 230/400 | 4500 | 9,7 | 1,00 |
| 11201042 | 420 | 230/400 | 6000 | 9,9 | 1,15 |
| 11201053 | 530 | 230/400 | 7500 | 9,6 | 1,32 |
| 11201062 | 620 | 230/400 | 9000 | 9,7 | 1,47 |
| 11201079 | 790 | 3 x 400 | 12000 | 9,9 | 1,73 |
Material heating element: copper nickel-plated
Available on request: other lengths and heating capacities, unheated zones, other voltages and materials.
