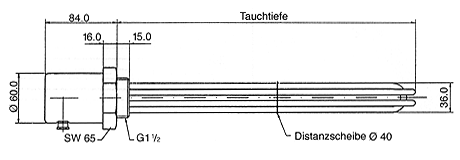

Screw plug immersion HEATERS | EHK series
stainless steel, with hood
- Screw plug immersion heater consisting of brass connector
G 1 1/2 - With 3 U-shaped hard-soldered immersion heater tubes
Ø 8,5 mm - Screw-in heating element with stainless steel connection hood
- Protection system IP 65
Technical data: Screw plug immersion heater without temperature controller
| Cat. No. | Immersion depth (built-in length) (mm) | Voltage (Volt) | Capacity (Watt) | Watt density (W/cm²) | Weight (kg) |
|---|---|---|---|---|---|
| 11211020 | 200 | 230/400 | 1500 | 5,9 | 0,78 |
| 11211025 | 250 | 230/400 | 2000 | 6,0 | 0,85 |
| 11211035 | 350 | 230/400 | 3000 | 6,0 | 1,00 |
| 11211045 | 450 | 230/400 | 4500 | 6,9 | 1,15 |
| 11211065 | 650 | 230/400 | 6000 | 6,2 | 1,45 |
| 11211065 | 650 | 230/400 | 9000 | 9,2 | 1,45 |
| 11211080 | 800 | 230/400 | 9000 | 7,4 | 1,68 |
| 11211100 | 1000 | 3 x 400 | 12000 | 7,9 | 1,98 |
Sheath material: 1.4541, 1.4571, 1.4828, 1.4876, 2.4858
Available on request: other lengths and heating capacities, unheated zones, other voltages, materials and connector sizes.
Product inquiry
We would be pleased to provide you with an individual offer and would be glad to advise you personally:
Tel: +49 (0) 2394 / 91 11 36
