Screw plug immersion HEATERS | EHK series

stainless steel, without hood

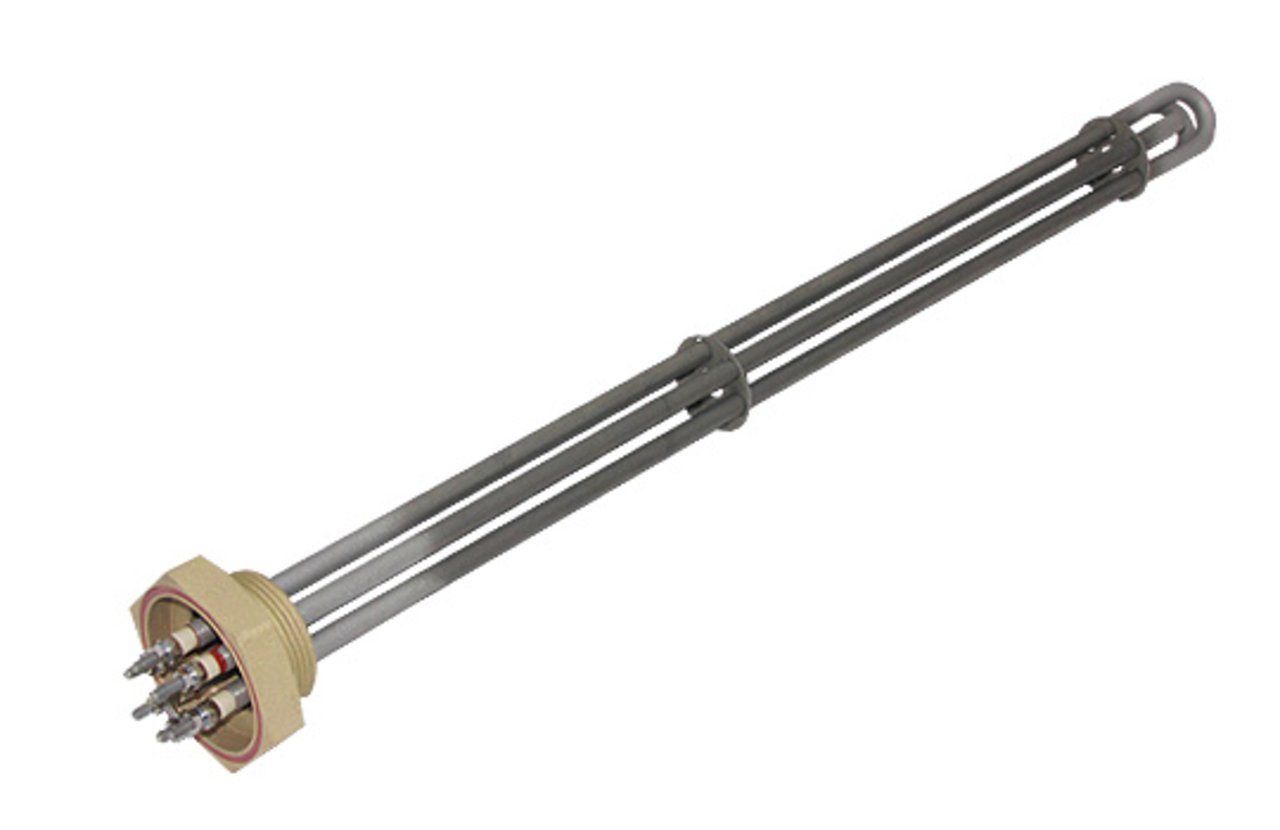

  • Screw plug immersion heater consisting of brass connector
    G 1 1/2
  • With 3 U-shaped hard-soldered immersion heater tubes
    Ø 8,5 mm
  • Material: 1.4541 / 1.4571 / 1.4828 / 1.4876 / 2.4858
  • Screw-in heating element without connection hood

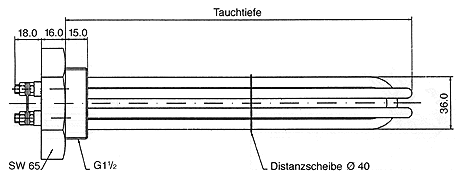

Technical data: Screw plug immersion heater without connection box

Cat. No.Immersion depth
(built-in length)
(mm)
Voltage
(Volt)
Capacity
(Watt)
Watt density
(W/cm²)
Weight
(kg)
11210020 200 230/400 1500 5,9 0,63
11210025 250 230/400 2000 6,0 0,70
11210035 350 230/400 3000 6,0 0,85
11210045 450 230/400 4500 6,9 1,00
11210065 650 230/400 6000 6,2 1,30
11210065 650 230/400 9000 9,2 1,30
11210080 800230/40090007,41,53
1121010010003 x /400120007,91,83



Sheath material: 1.4541, 1.4571, 1.4828, 1.4876, 2.4858

Available on request: other lenghts and heating capacities, unheated zones, other voltages, materials and connector sizes.
