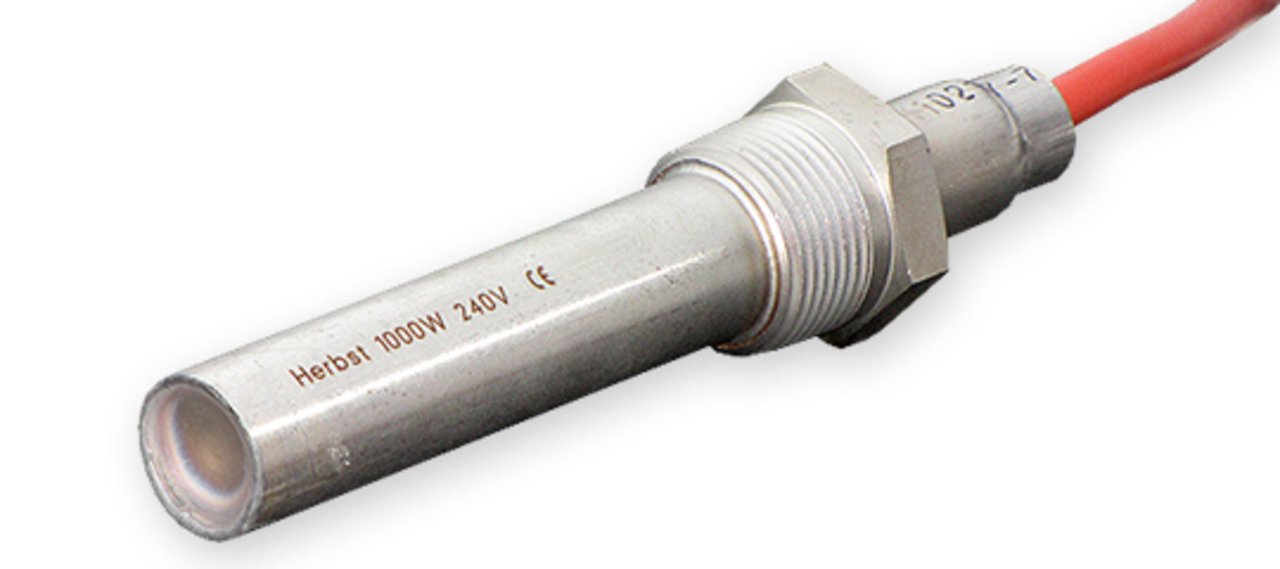

Heating Cartridges | HLP series
Heavy-duty cartridge heaters consist of:
- Heat-resistant stainless-steel tube 1.4541 with
inert-gas welded bottom plate (gas-tight) - Pure high-density magnesium oxide
- Heating conductor made of NiCr 8020
- Ceramic wound core
- Supply wire made of fibreglass-insulated flexible
nickel strand conductor with insulated entrance.
Heating cartridges are available as options:
- with screw-in nipples
- with thermocouple
- Pt-100 sensors
- for AC operation
Heating cartridges for the heating of tools and fluids
Types - Cartridge heaters
| Cartridge heater-Ø | Conductor (mm x mm) | Current load (nominal for conductor) Standard type | |
|---|---|---|---|
| (mm) | (inch) | ||
| 6,5 | 1/4'' | 0,18 | 3 |
| 8,0 | 0,18-0,5 | 4 | |
| 10,0 | 3/8'' | 0,5-0,75 | 5 |
| 12,5 | 1/2'' | 0,75 | 8 |
| 16,0 | 5/8'' | 1,5 | 15 |
| 20,0 | 2,5 | 25 | |
Available on request: other lengths and heating capacities, diameters, unheated zones, other voltages, materials and thread sizes.
