Screw plug immersion heater 750 W
to heat water in sterilization basins
Screw plug immersion heater 1500 W
to heat sterilization basinsScrew plug immersion heater 3000 W
for sensitive applications in hygiene sector.

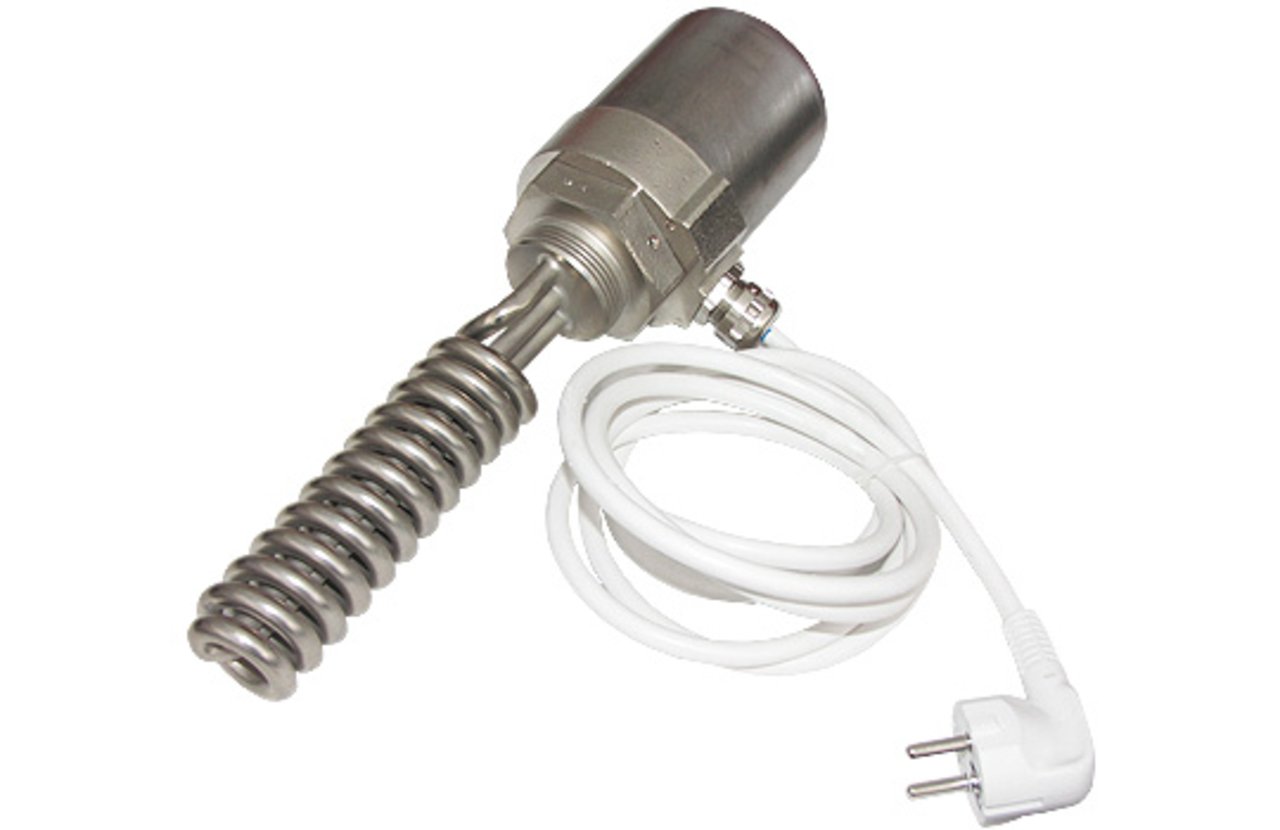

Screw plug immersion HEATERS | EHK
to heat sterilization basins
- Screw-in heating element consisting of
brass connector G 1 1/2 - One electric heating element Ø 8,5 mm in
spiral form - Material: 1.4571 nickel-plated
- 1-pole thermostat 30-110 °C
- With Schuko plug
- Screw plug immersion heater with terminal box
in stainless steel - Protection system IP 68
750 W
Immersion depth: 200 mmThermostat preset to 92° C
1500 W
Immersion depth: 200 mmThermostat preset to 95 °Cwith dry-running protection
3000 WImmersion depth: 300 mmThermostat preset to 95 °C
Screw plug immersion heater for sterilization basins in hygiene sector
| Cat. No. | Immersion depth (built-in length) (mm) | Voltage (Volt) | Capacity (Watt) | Watt density (W/cm²) | Weight (kg) |
|---|---|---|---|---|---|
| IN750/1 | 200 | 230 | 750 | 2,2 | 1,65 |
| IN1500/2 | 200 | 230 | 1500 | 4,4 | 1,80 |
| IN3000/1 | 300 | 230 | 3000 | 3,7 | 1,95 |
Sheath material: 1.4571 nickel-plated
Available on request: other lengths and heating capacities, unheated zones, other voltages and materials.
